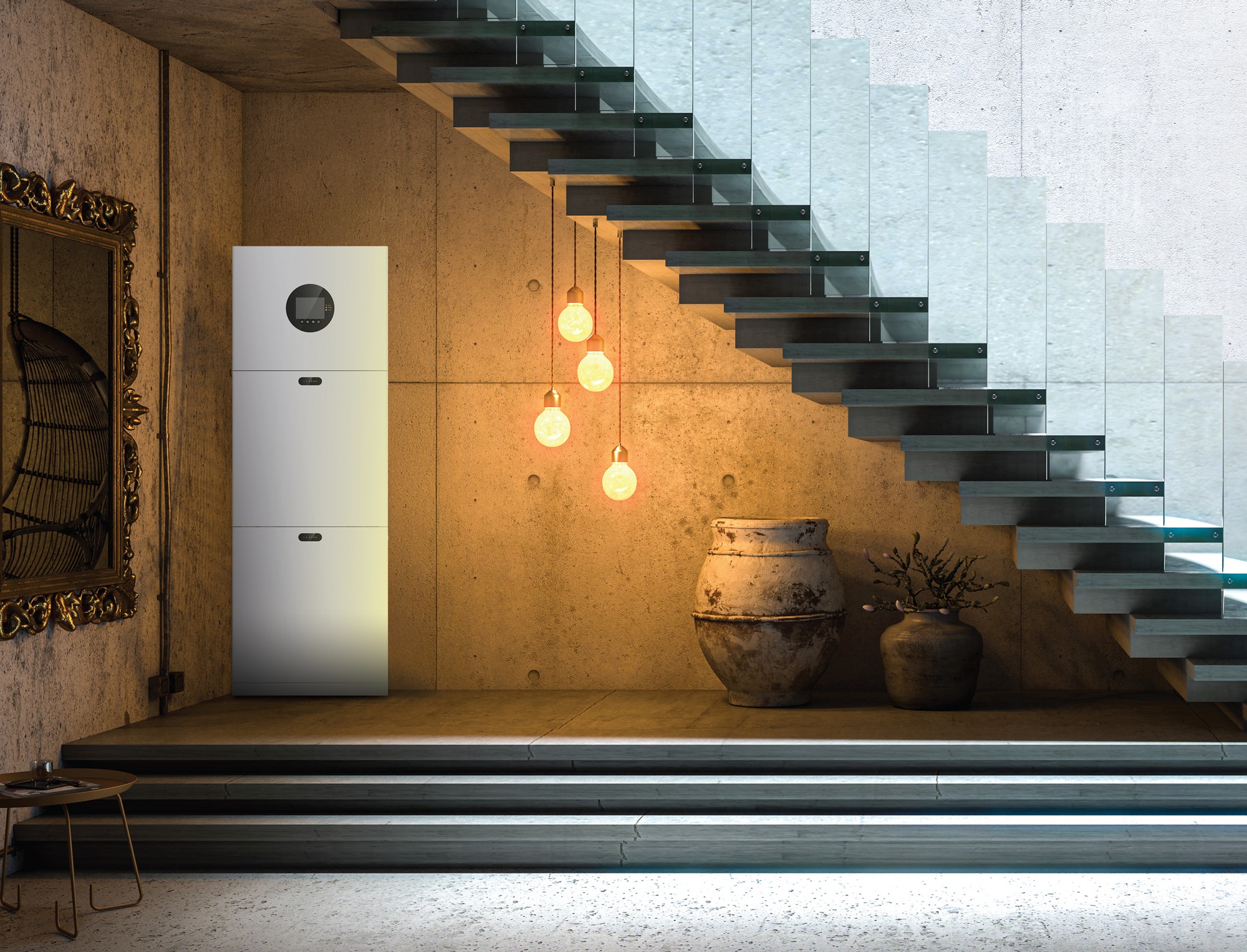

PowerWall VEZHA is a unified solution for use in apartments, houses, and offices. Thanks to its ultra-compact form factor (the system is only 140 mm deep), the device doesn’t clutter up space while maintaining interior aesthetics. PowerWall 2E VEZHA is a cutting-edge backup power system featuring a powerful 5,000 W hybrid inverter.
Maximum efficiency – minimum hassle
PowerWall VEZHA employs a revolutionary wireless connection technology between the inverter and battery modules, eliminating the need for thick cables, as energy and data transfer within the system occurs through a unique power interface.
A completely new topological circuit in the power module enables energy exchange among photovoltaic, grid, battery, and load components. The system also supports photovoltaic and grid charging functions.
The photovoltaic charging module uses an advanced optimized MPPT monitoring technology that quickly identifies the maximum power point of the solar array in any environment, ensuring maximum real-time solar panel energy output. In addition, the MPPT features a wide voltage range and supports a maximum photovoltaic array power of 5,000 W.
The grid charging module uses an advanced control algorithm to implement fully digital dual closed-loop voltage and current regulation. The wide AC input voltage range and comprehensive input/output protection functions ensure stable and reliable battery charging and protection. The inverter module features a fully digital intelligent design, uses modern PWM technology, outputs a pure sine wave, and converts DC to AC power – ideal for household appliances, power tools, and other AC loads.
Three main inverter modes of the VEZHA system:
- SOL – photovoltaic priority. The “Solar First” mode switches to grid power when the solar array does not supply enough energy or when battery charge drops below a set level.
- UTI – grid priority. Operates from the grid, switching to the inverter only in case of grid power failure.
- SBU – battery priority. The load is powered primarily by the solar system and battery; the system switches to the grid only when the battery voltage or charge falls below the set level. The battery can continuously supply energy to the load even when grid power is available.

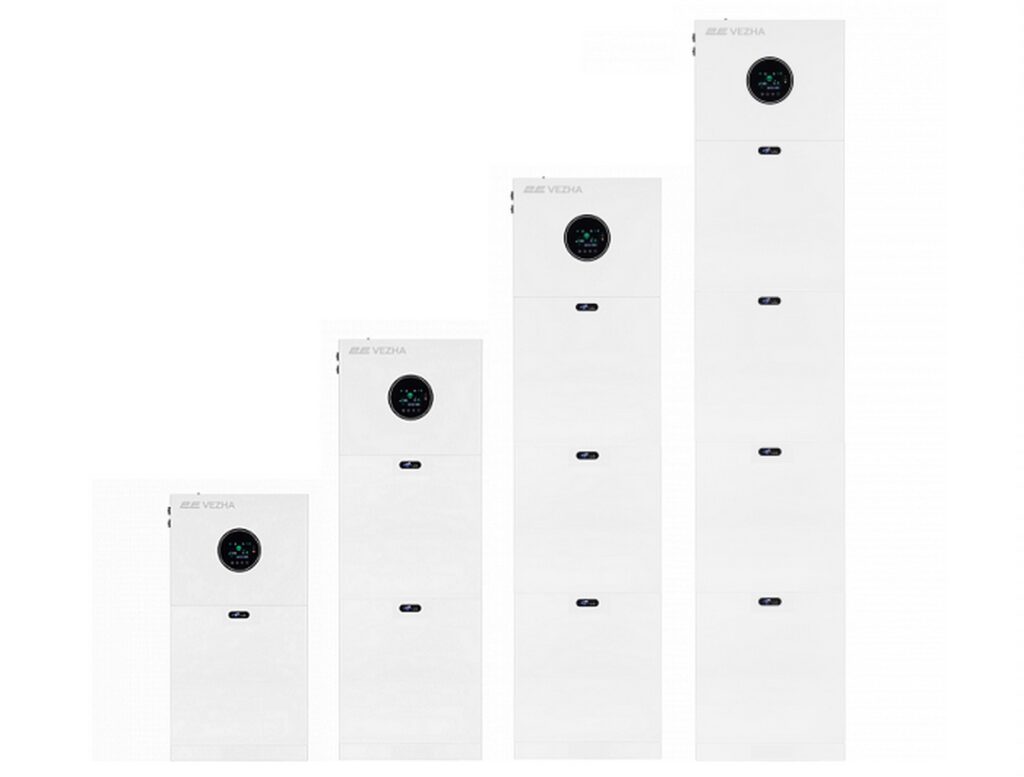

Possible backup power system configurations: PowerWall 2E VEZHA.
| Model | Battery capacity | Rated output power | Rated output voltage (AC) | Frequency | Charging current | Max. photovoltaic power |
| 2E-ESS-PWV5-5 | 5,12 kWh | 5 000 W | 230 V | 50 Hz | 0~100 A | 5 500 W |
| 2E-ESS-PWV5-10 | 10,24 kWh | 5 000 W | 230 V | 50 Hz | 0~100 A | 5 500 W |
| 2E-ESS-PWV5-15 | 15,36 kWh | 5 000 W | 230 V | 50 Hz | 0~100 A | 5 500 W |
| 2E-ESS-PWV5-20 | 20,48 kWh | 5 000 W | 230 V | 50 Hz | 0~100 A | 5 500 W |

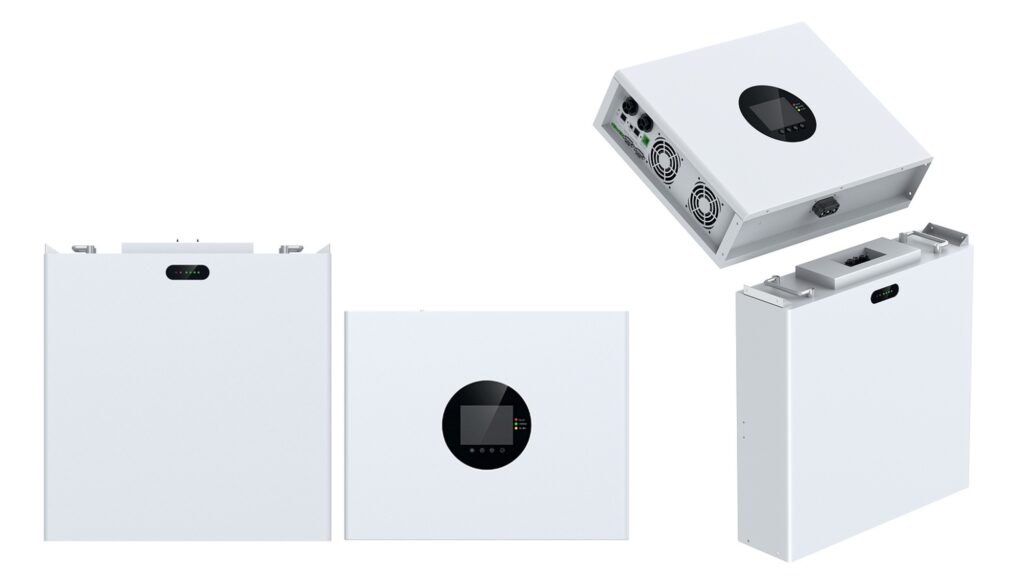

Battery Module for Energy Storage
The energy capacity of each battery module is 5 kWh. The energy storage battery module uses high-performance lithium iron phosphate (LiFePO₄) batteries with a long service life. At the same time, a modular design is applied. Each energy storage module is equipped with an intelligent BMS system and can be combined into a battery pack with a maximum capacity of 20 kWh.
Technical specifications of the VEZHA module
| Battery type | LiFePO4 |
| Battery energy | 5,12 kWh |
| Battery capacity | 100 Ah |
| Battery rated voltage | 51,2 V |
| Battery operating voltage range | 44,8–57,6 V |
| Standard charging current | 50 A |
| Standard discharging current | 50 A |
| Maximum charging current | 100 A |
| Maximum discharging current | 100 A |
| DOD | 80 % |
| Maximum number of batteries connected in parallel | 4 |
| Estimated battery life | 6 000 cycels (80 % DOD, 0,5 °C, 25 °C) |
| Operating temperature | Charging 0–45 °C |
| Discharging-10–45 °C | |
| Operating temperature | 5–85 % |
| Rated operating altitude | <3 000 m |
| Protection class | IP20 |
| Recommended operating environment | Indoor |
| Installation method | Vertical |
| Weight | 45 kg |
| Dimensions (w x h x d) | 500 × 140 × 500 mm |
Support for Multi-Tariff Plans
VEZHA features a time-based charging and discharging function, allowing different charging and discharging periods to be set according to local tariffs. This ensures rational use of electricity and photovoltaic energy, significantly increasing the economic efficiency of the system and expanding opportunities for optimizing electricity costs.

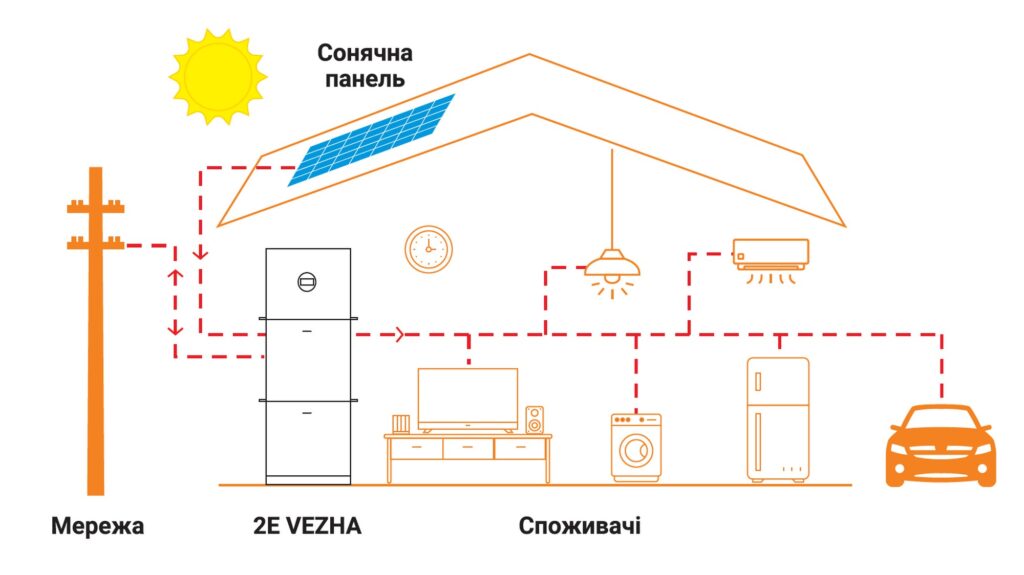

Typical topological diagram of VEZHA backup power system application
| Inverter | Rated output power | 5 000 W |
| Maximum peak power | 10 000 VА | |
| Power factor | 1 | |
| Rated output voltage | 220 V AC | |
| Frequency | 50 Hz | |
| Automatic switching time | <10 ms | |
| Harmonic distortion | <3 % | |
| AC Input | Maximum AC charging power | 3 150 W |
| Maximum AC input current | 60 A | |
| Rated input voltage | 220/230 V AC | |
| Input voltage range | 90–280 V AC | |
| AC Output | Rated output power | 5 000 W |
| Maximum output current | 30 A | |
| Frequency | 50 Hz | |
| Overload current | 40 A | |
| Photoelectric Input | Solar charging type | MPPT |
| Maximum input power | 5 500 W | |
| Maximum input current from PV panel | 100 A | |
| PV panel operating voltage range | 120–500 V | |
| MPPT voltage range | 120–450 V | |
| General Data | Operating temperature range | -15–55 °C |
| Storage temperature range | -25–60 °C | |
| Humidity range | 5–95 % | |
| Rated operating altitude | <2 000 m | |
| Cooling mode | Air cooling | |
| Noise level | 60 dB (A) | |
| Protection class | IP20 | |
| Certification | CE(EN62109-1) | |
| EMC certification level | EN61000 | |
| Weight | 25 kg | |
| Dimensions (w x h x d) | 400 × 140 × 500 mm |
Even More Capabilities with PowerWall VEZHA:
- Support for parallel connection on a single phase to increase the system’s total power. Connect up to 6 units in parallel to achieve up to 30 kW of rated power and 120 kWh of total system capacity.
- Support for connection to a three-phase system: 3 VEZHA systems can be combined into one three-phase 380 V system. The line voltage between L1 (phase 1) and L2 (phase 2) will be 230 × 1.732 = 398 V AC, and similarly, the line voltage between L1-L3 and L2-L3 will be 398 V AC; the voltage between L1-N, L2-N, L3-N will be 230 V AC. This configuration allows up to 30 kW of power in a three-phase system and up to 120 kWh of total system capacity.
- Proprietary 2E Smart Energy remote monitoring system. This convenient app, compatible with iOS and Android (available in app stores), allows real-time monitoring of the 2E backup system: current consumption, energy generation levels, and many other parameters are not only displayed but also stored for further analysis.
