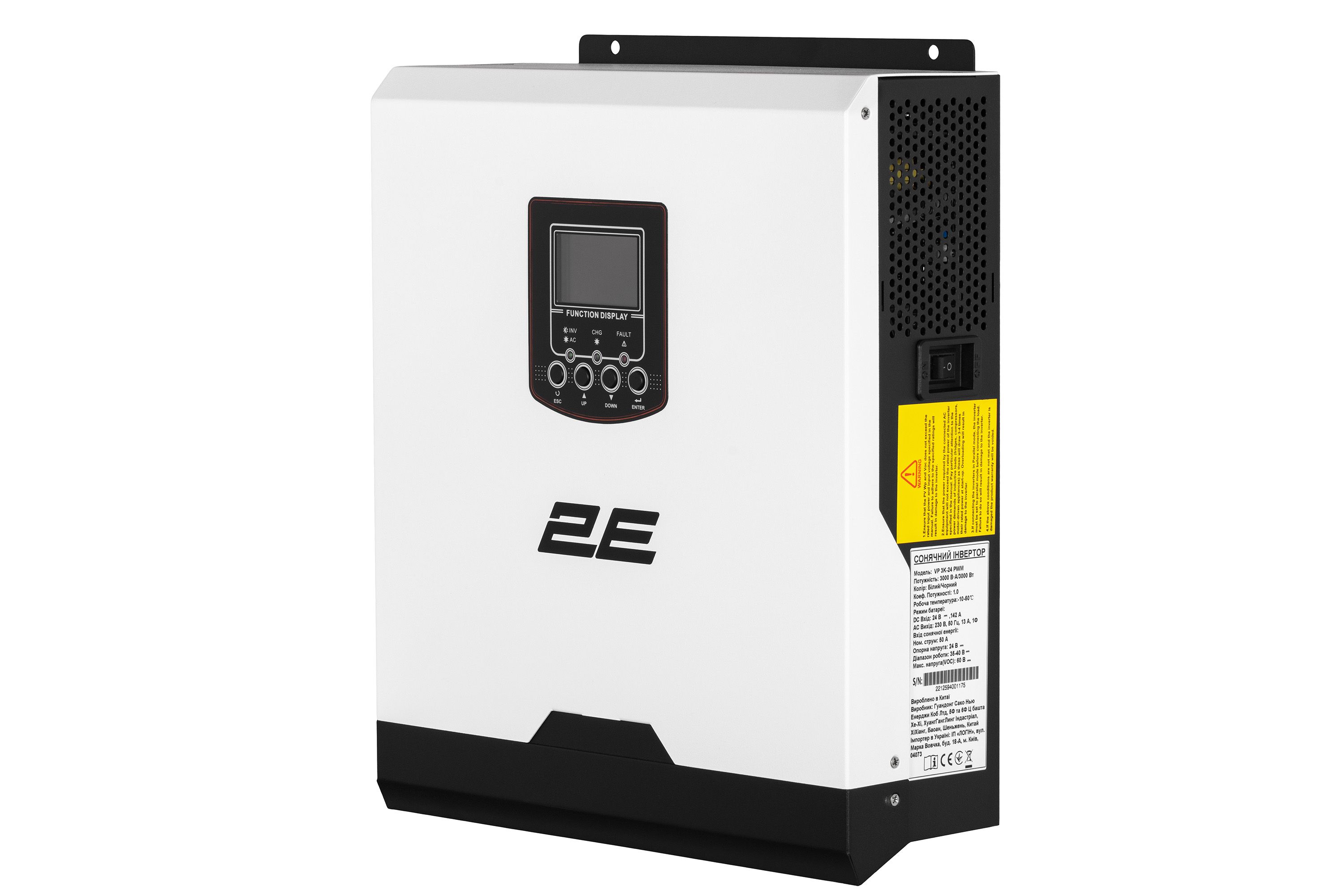

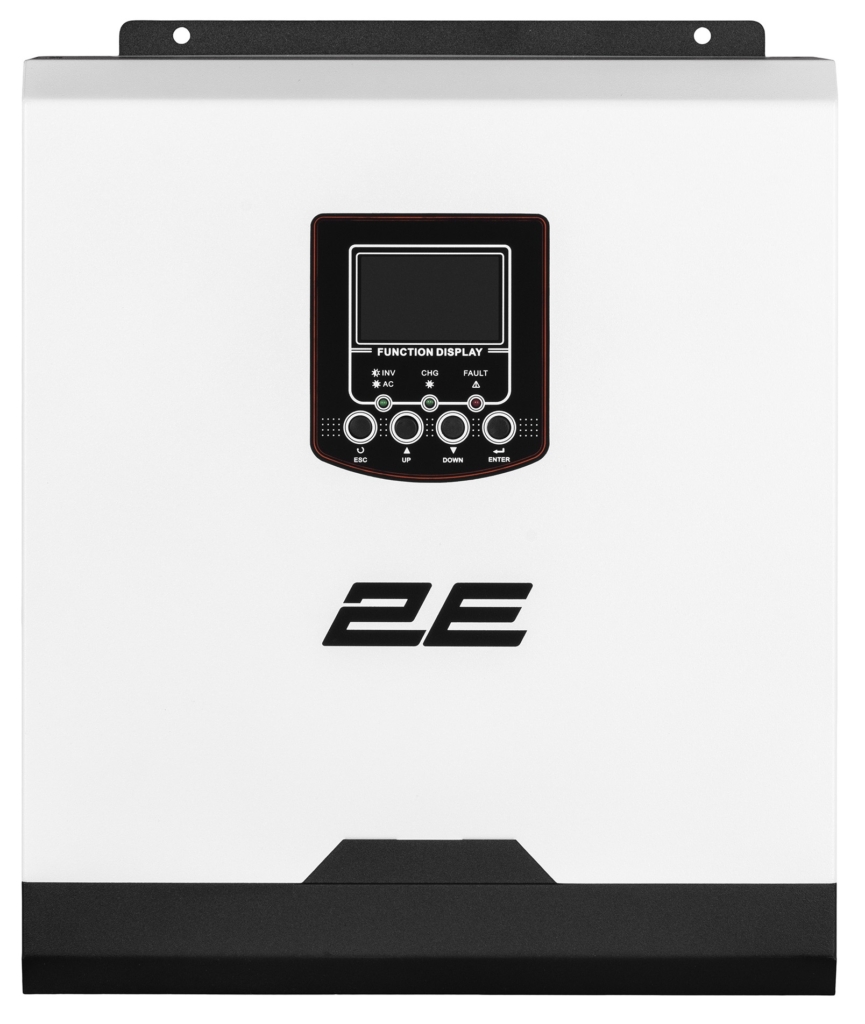

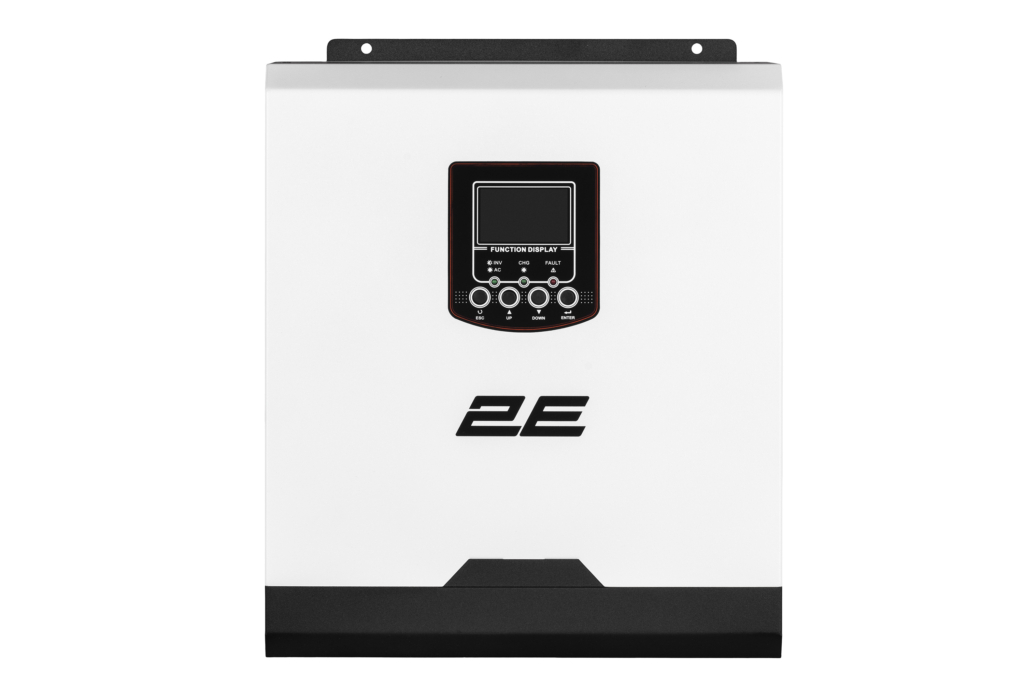

2E VP 3K-24 PWM Solar Inverter

Product code: 2E-VP-3K24

Inverter 2E is a DC to AC converter, its efficiency is 90-93%. The model has built-in solar and mains chargers. The VP-3K24 is designed for single-phase power supply, provides a pure sine wave output and a switching time of 10 or 20 ms depending on the type of connected devices.

  • Power 3 kW/3000 VA
  • Possibility to connect a 24 V battery
  • Built-in chargers (grid and solar)
  • Pure sine wave
  • Switching time: 10ms (for PC) / 20ms (home appliances)
  • Efficiency 90-93%
  • Charging priority selection
  • Automatic operating modes
  • Built-in security features
  • Compatible with generators
10 650 uah.*
Main:
A type Stand-alone inverter (з вбудованим мережевим і MPPT сонячним ЗУ)

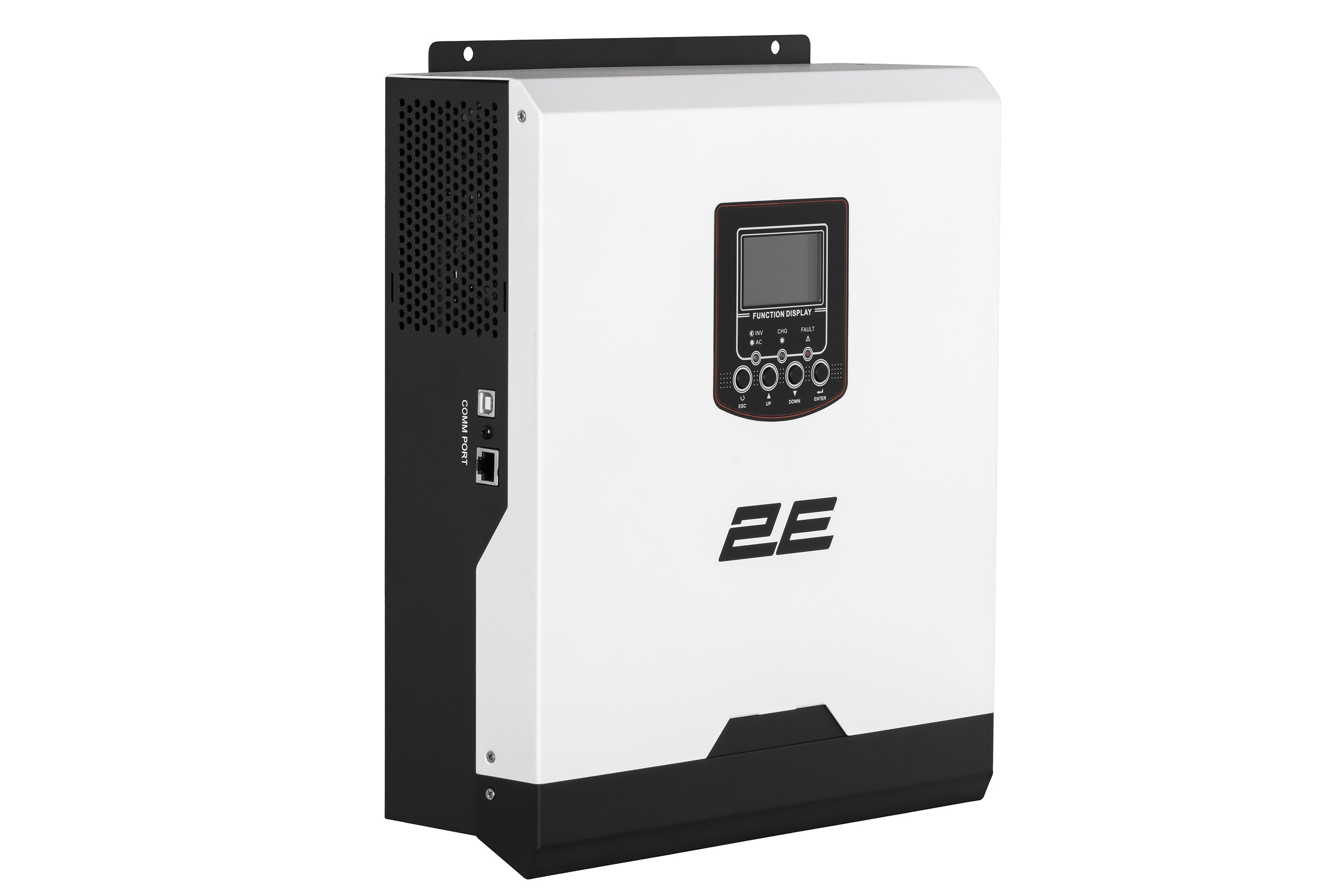

Connection RS-232 / USB / Wi-Fi окремий модуль зв’язку 2E-COMM-MOD
Specifications:
Battery External 24VDC 27 V-fc/ 32V-op
Power 3 kW
Input 170-280VAC, ~ 50 / 60Hz, Hardwired
Exit 230VAC ~ 50 / 60Hz, pure sine wave, Hardwired
Maximum power of PE array 1200 W
Max. current of charger 70 A (комбінований)
PWM window 60
Maximum output efficiency -93 %
Additionally:
Switching time 10ms (for PC) / 20ms (home appliances)
Physical characteristics:
Colour white with black
Dimensions ( HxWxD ) 390x420x193
The weight 7.8 kg
  • Power 3 kW/3000 VA
  • Possibility to connect a 24 V battery
  • Built-in chargers (grid and solar)
  • Pure sine wave
  • Switching time: 10ms (for PC) / 20ms (home appliances)
  • Efficiency 90-93%
  • Charging priority selection
  • Automatic operating modes
  • Built-in security features
  • Compatible with generators

Pure sine wave and high efficiency

With dimensions of 420 × 390 × 193 mm and a weight of 7.8 kg, the model has a fairly good power – 3 kW (3,000 VA). The design provides a built-in solar charger that allows you to connect the inverter to an array of solar panels with a power of up to 1200 watts. VP-3K24 is autonomous, any type of 24 V DC battery can be connected to it, while the maximum charger current is 70 A (combined), it is this indicator that determines the charging speed of the external battery. The inverter provides 230V pure sine wave ( Hardwired ) in battery mode. Regarding signal from solar panels: PWM range is 60 VDC.

Automatic operating modes and charging priority selection

The efficiency of the inverter is 90-93%, which means that the device will “take” 7-10% of the energy for its own maintenance. If we are talking about domestic use, then a device of such power will be enough to heal a refrigerator, boiler, TV, washing machine and provide lighting at home. The switching time depends on the type of devices: 10 ms (for PC) and 20 ms (home appliances). The design includes a built-in display and buttons for setting charging priority or automatic modes, as well as protection functions for safe use of the device. Regarding interfaces: the inverter is equipped with USB and RS-232 ports.
